Why fiberglass?

Fiberglass grating provides excellent strength per weight ratio, and is ideal in high corrosive situations. With a variety of molded patterns, pultrusions, resin, and colors to choose from; fiberglass has something to cover any application.

If you are looking for alternate corrosive resistant material, please check out our Aluminum products.

For an alternate in heavy duty traffic rated grating check out our Steel products.

Read up on how we can take care of your entire fiberglass project with our Fiberglass Structure capabilities.

Molded Fiberglass Grating

Molded fiberglass grating is engineered to provide proven corrosion resistance and reliable service

under extreme conditions. The interwoven square mesh construction provides bi-directional strength

allowing for efficient panel usage and cutting to minimize waste. The high resin to glass ratio

(approximately 65% resin to 35% glass by weight) provides excellent service life in the most

demanding applications.  Molded fiberglass grating is available in square or rectangular mesh

patterns with either Meniscus (Concave - no grit) or Gritted slip resistant top surfaces.

Standard Resin Systems
Molded fiberglass grating is available in three standard resin systems each providing differing levels of corrosion protection.

All three resin systems meet Class 1 Flame Spread Rating per ASTM E-84 test standards.

  • GP: a General Purpose Polyester Resin System offers good corrosion resistance at an economical price. Standard colors available: Green, Yellow, Dark Gray and Light Gray.

  • IFR: a premium grade Isophthalic Polyester Resin System that provides excellent corrosion protection.  Standard colors available: Green, Yellow, Dark Gray and Light Gray.

  • VFR: a Vinyl Ester Resin System provides the highest level of corrosion protection. Standard colors available: Dark Gray and Orange.

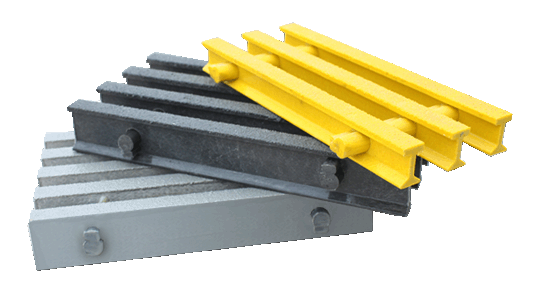

Pultruded Fiberglass Grating

Pultruded fiberglass grating provides the capability to support heavier loads and longer spans

when compared to molded grating of similar depth and weight. We have an extensive offering of

pultruded gratings to meet most every need from ADA compliant walkways to heavy duty vehicular

traffic conditions. Pultruded fiberglass gratings are engineered to withstand corrosive conditions

that also  require high strength.

Standard Resin Systems
Pultruded fiberglass  grating is available in two standard resin systems each providing differing levels of corrosion protection.

Both resin systems meet Class 1 Flame Spread Rating per ASTM E-84 test standards.

  • IFR: a premium grade Isophthalic Polyester Resin System that provides excellent corrosion protection.  Standard colors available: Yellow and Dark Gray.

  • VFR: a Vinyl Ester Resin System provides the highest level of corrosion protection.  Standard colors available: Yellow and Dark Gray.

Specialty Fiberglass Grating

Fiberglass grating comes in many styles and sizes for any project. Not every style is in-stock ready to go and must be made to order. Special spacings, depths, and resins can be requested from our list below.

High Load Capacity (HLC) grating makes use of of the traditional benefits of molded grating products; high strength, corrosion resistance, fire retardancy, nonconductivity and low maintenance, and has been engineered to carry the higher loads that  traditional grating products can not. Molded HLC grating is available in a 4’ x6’ panels with 1-1/2” and 2” thicknesses and comes in GPFR, IFR, and VFR resin systems.

Gritted/Meniscus

Structure/Support

Embed Angle




Stock Panel Sizes

3' x 10'; 4' x 8'; 4' x 12'

Stock Colors

Yellow, Green, Dark Gray

Stock Resins

Isophthalic; Vinyl-Ester

Stock Surface

Gritted

Stock Panel Sizes

4' x 12'

Stock Colors

Yellow, Green, Dark Gray

Stock Resins

Isophthalic; Vinyl-Ester

Stock Surface

Gritted

Stock Panel Sizes

4' x 12'

Stock Colors

Light Gray

Stock Resins

Isophthalic

Stock Surface

Gritted

Stock Panel Sizes

3' x 10'; 4' x 8'; 4' x 12'

Stock Colors

Yellow, Green, Dark Gray

Stock Resins

Isophthalic; Vinyl-Ester

Stock Surface

Gritted

Stock Panel Sizes

3' x 20'; 3' x 24'; 4' x 20'; 4' x 24'

Stock Colors

Yellow; Dark Gray

Stock Resins

Isopthalic

Stock Surface

Gritted

Stock Panel Sizes

3' x 20'; 4' x 20'

Stock Colors

Yellow; Dark Gray

Stock Resins

Isopthalic

Stock Surface

Gritted

Stock Panel Sizes

3' x 10'; 3' x 12'; 4' x 12'

Stock Colors

Yellow, Green, Dark Gray

Stock Resins

Isophthalic; Vinyl-Ester

Stock Surface

Gritted

Stock Panel Sizes

4' x 12'

Stock Colors

Light Gray

Stock Resins

General Purpose

Stock Surface

Gritted

Stock Panel Sizes

12' x 4'

Stock Colors

Green; Dark Gray

Stock Resins

Isophthalic

Stock Surface

Gritted

Stock Panel Sizes

3' x 10'; 3' x 12'; 4' x 12'

Stock Colors

Yellow, Green, Dark Gray

Stock Resins

Isophthalic; Vinyl-Ester

Stock Surface

Gritted

Stock Panel Sizes

3' x 20'; 3' x 24'; 4' x 20'; 4' x 24'

Stock Colors

Yellow; Dark Gray

Stock Resins

Isophthalic; Vinyl-Ester

Stock Surface

Gritted

Stock Panel Sizes

Non-Stock

Stock Colors

Yellow; Dark Gray

Stock Resins

Isopthalic

Stock Surface

Gritted




Fiberglass Stair Tread

If the Fiberglass grating you are looking for is not listed above, it is because it is not something we have on-stock at our local warehouse and we need to have it brought in. We have access to all types of fiberglass grating and are always wanting to make it easy for you to build your project with the correct materials.

Look over the list below of all Special Order materials and reach out to us with any questions or requests.

HLC Molded Fiberglass Grating (More Information)

  • 1-1/2” x 1” x 2” HLC Molded

  • 2” x 1” x 2” HLC Molded

Special Molded Fiberglass Grating (More Information)

  • 1-1/2” x 1” x 6” Rectangular Molded

  • ½” x 1-1/2” x 1-1/2” Square Molded

  • ½” x 2” x 2” Square Molded

Special Pultruded Fiberglass Grating (More Information)

  • T 10-33

  • T 10-35

  • T 10-50

  • T 15-17

  • T 15-33

  • T 15-50

  • T 20-33

  • I 10-50

  • I 15-50

  • I 10-40-ADA

  • I 10-50-ADA

  • I 10-60-ADA

  • I 15-40-ADA

  • I 15-50-ADA

  • I 15-60-ADA

  • I 30-40-ADA

  • I 30-50

  • I 30-60

  • HD 10-40

  • HD 10-50

  • HD 10-60

  • HD 15-40

  • HD 15-50

  • HD 15-60

  • HD 20-40

  • HD 20-50

  • HD 20-60

  • HD 25-40

  • HD 25-50

  • HD 25-60

  • I 10-40

  • I 15-40

  • T 10-18

  • I 15-60 PH

Our fiberglass stair tread panels allow you to cut your own stair treads quickly and inexpensively for less waste and less cost. We stock molded stair treads in several sizes and configurations. Custom-fabricated sizes are available upon request.

We can also supply pultruded fiberglass stair tread in stock sizes or made to order. These maintenance-free treads are engineered for strength, durability and corrosion resistance. Features include a non-skid surface and square tube nosing for high visibility. Our design is easy to fabricate and install on-site with basic tools.



Fiberglass Stair Tread Covers are a cost-effective option to improve stairway safety for your workers. All of our stair treads are made with corrosion-resistant, fireretardant resin and have an anti-skid top surface.



All stair treads must be fastened in place. We offer a variety of clips to complete your installation.



For a list of available panel sizes, standard widths, and their load calculations,

check out the Stair Section of our catalog.
